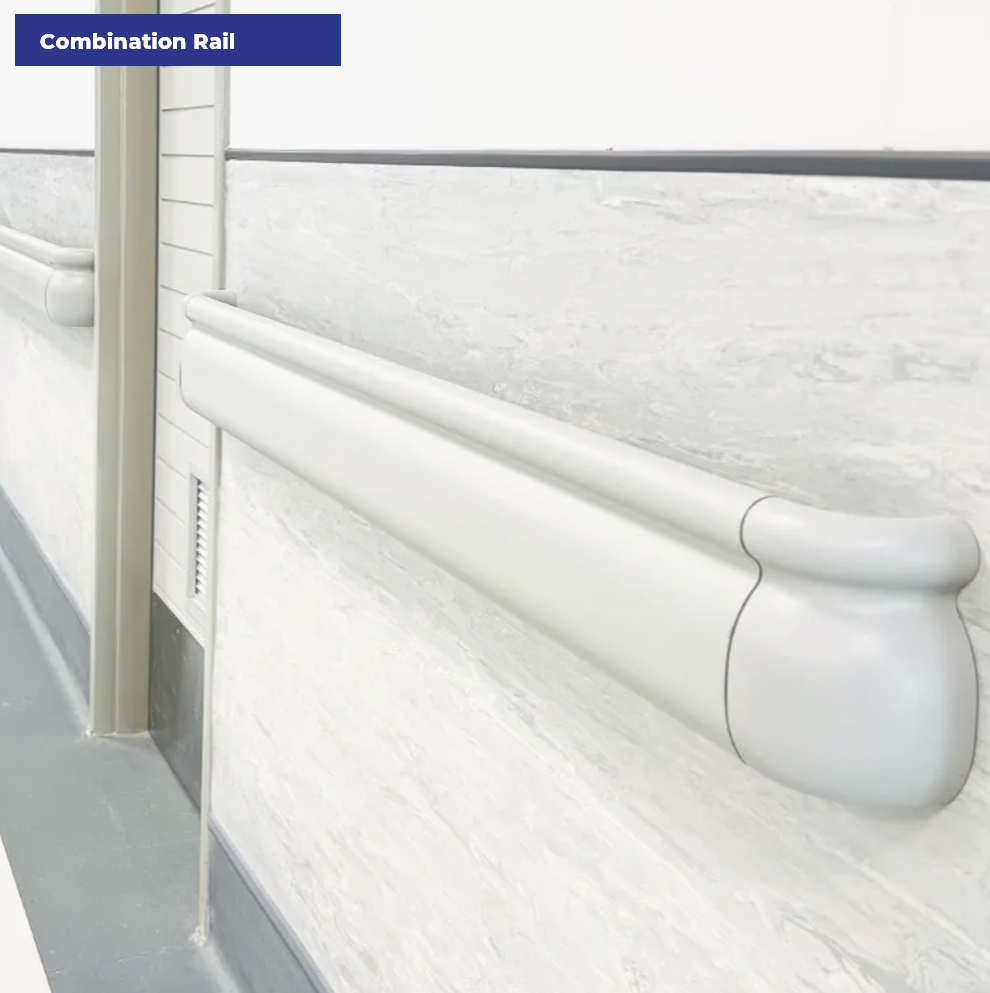

Combination Rail Series

Key Features

🧩
Modular system comprising PVC-u covers, aluminium retainers and a full range of finishing accessories
✨
Replaceable, through coloured, easy-to-clean covers
🔒
Closed slots to ensure ends remain in place in event of severe high impact
🦠
Reveals provide tight, neat joints with bactericidal polymer

Product Showcase

Model CGL 159

Model CGL 159

Model: CGL 159
Product No CGL 159
Material Vinyl cover + aluminum retainer
Overall Dimensions 36W x 159H mm
Aluminum 1.4 / 1.6 mm thickness
Vinyl Cover 2mm thickness vinyl cover

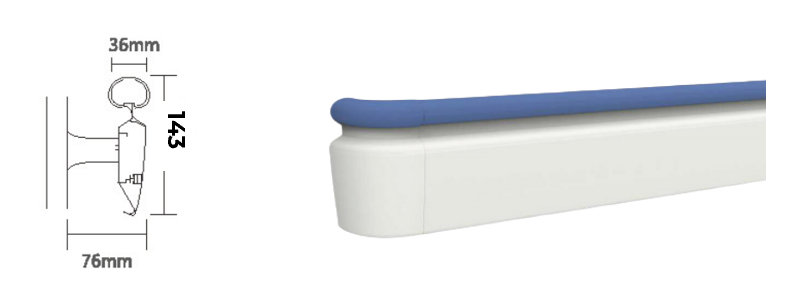

Model CGL 143

Model CGL 143

Model: CGL 143
Product No CGL 143
Material Vinyl cover + aluminum accessories
Overall Dimensions 143H mm
Aluminum 1.6mm thickness, ABS materials
Vinyl Cover 2mm thickness vinyl cover

Installation Steps

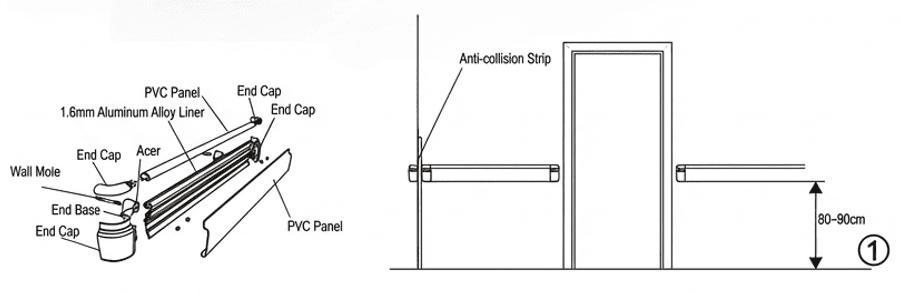

1

Measure

Measure and mark the desired height on the wall surface for precise alignment.

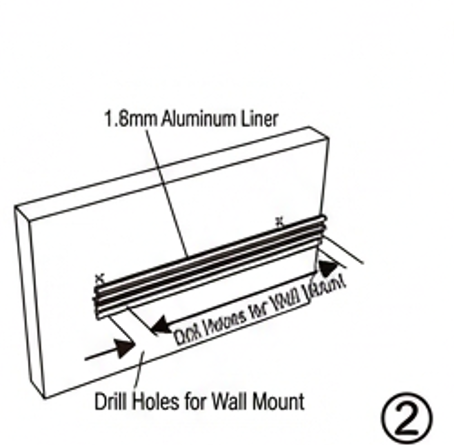

2

Drill & Secure

Drill holes and firmly secure the 1.8mm aluminum liner base using heavy-duty bolts.

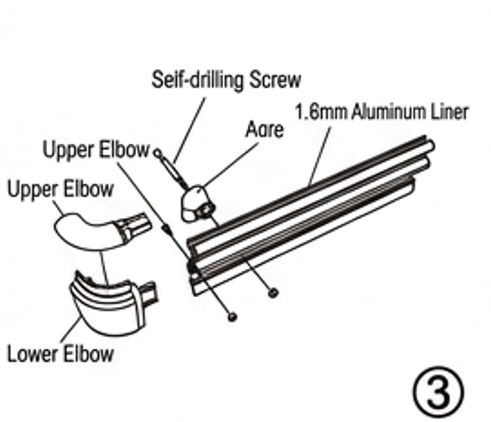

3

Install Brackets

Install the upper and lower elbows and secure all supporting brackets with screws.

4

Snap Cover

Snap the PVC panel cover over the aluminum retainer and attach the corner caps.
