Complete instructions for the Curatrack curtain track system. Follow these guidelines to ensure proper installation and optimal performance.

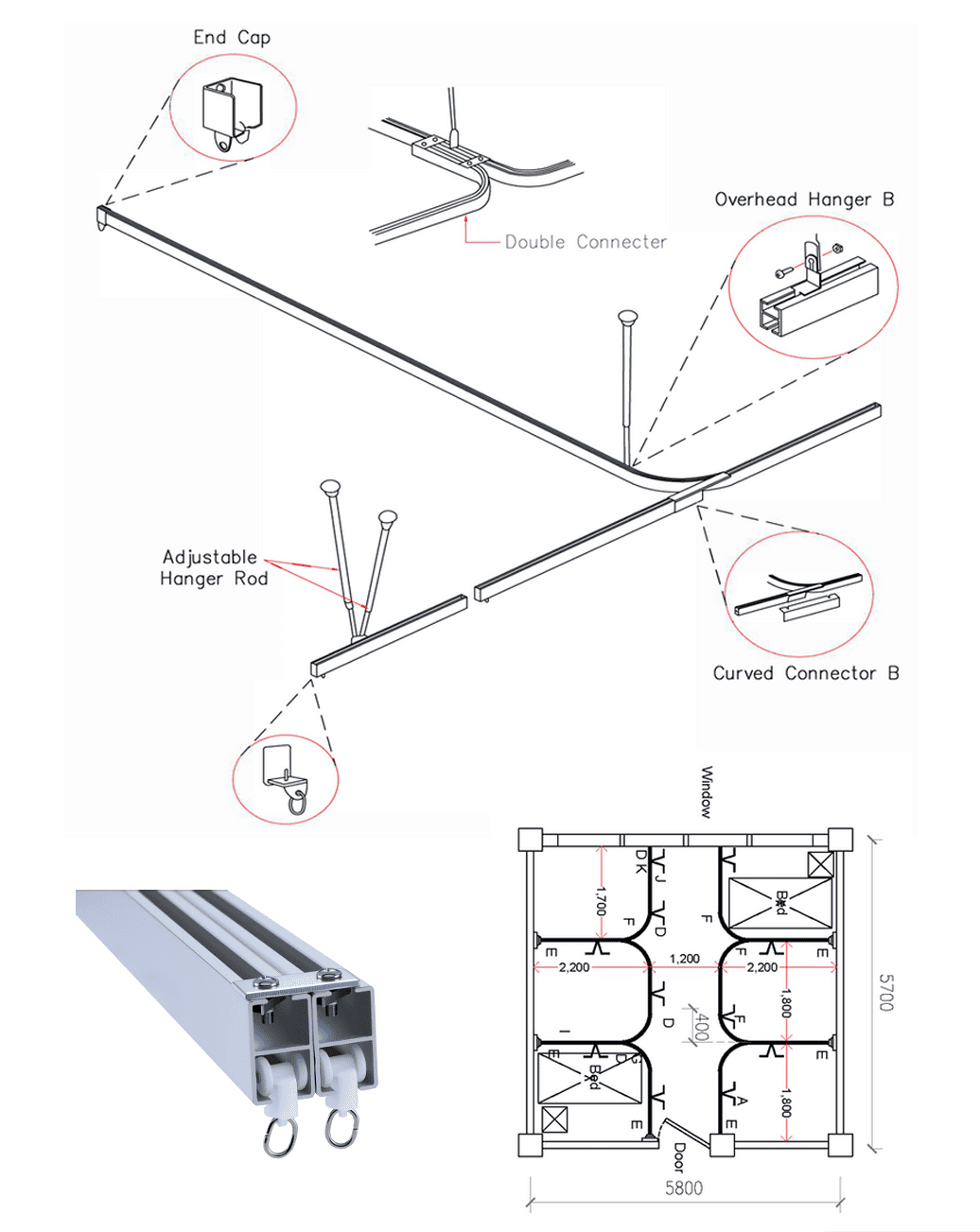

Click diagram to view in full size
Measure the room dimensions and mark the track path on the ceiling according to the floor plan.
Secure the LEX-TS Wall Bracket to the wall at the starting point. High strength bearing up to 100KG.
Install the LEX-TS Adjustable Suspension Rods to the ceiling at intervals to support 50KG per rod.
Insert the LEX-TS Cubicle Track into the brackets. Use connectors to join track sections.
Slide the LEX-TS 360° Rollers into the track. Secure ends with a LEX-TS End Cap.
Verify all connections are tightened and track is level. Test curtain movement for smooth glide.
