Technical Specifications

System Details

Heavy duty curtain track system that has met safety requirements to be applied in all Medical Centers & Hospitals. Engineered with high-grade Aluminium Alloy for maximum durability and hygiene.

Series 01: Modular System

Flexible curtain track system that can be bent to any shape for hospital ward requirements.

Parts No Approx. Weight Load
LEX-TS Cubicle Track 40KG (400N)
LEX-TS Wall Bracket 100KG (1000N)
LEX-TS Suspension Rod 50KG (500N) / rod
LEX-TS 360° Roller 5KG (50N) / roller

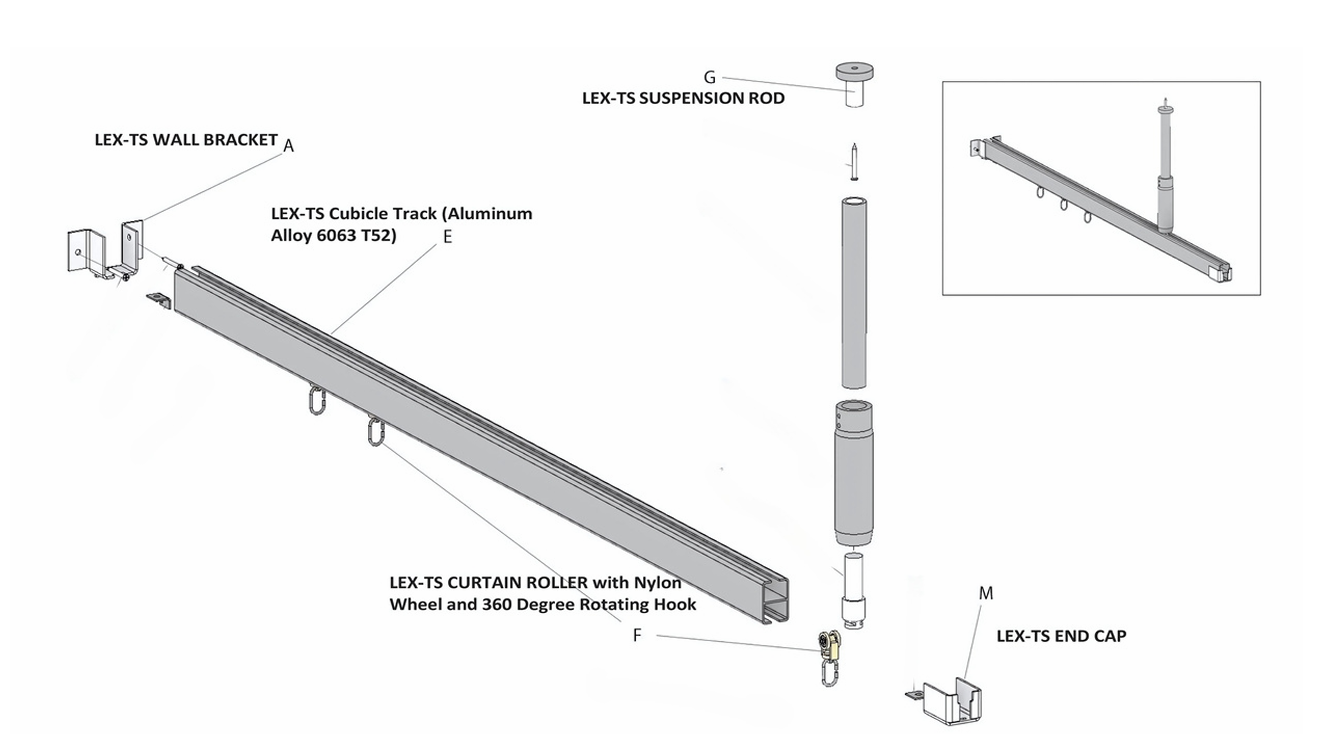

CuraTrack Modular System

Series 02: Component Details

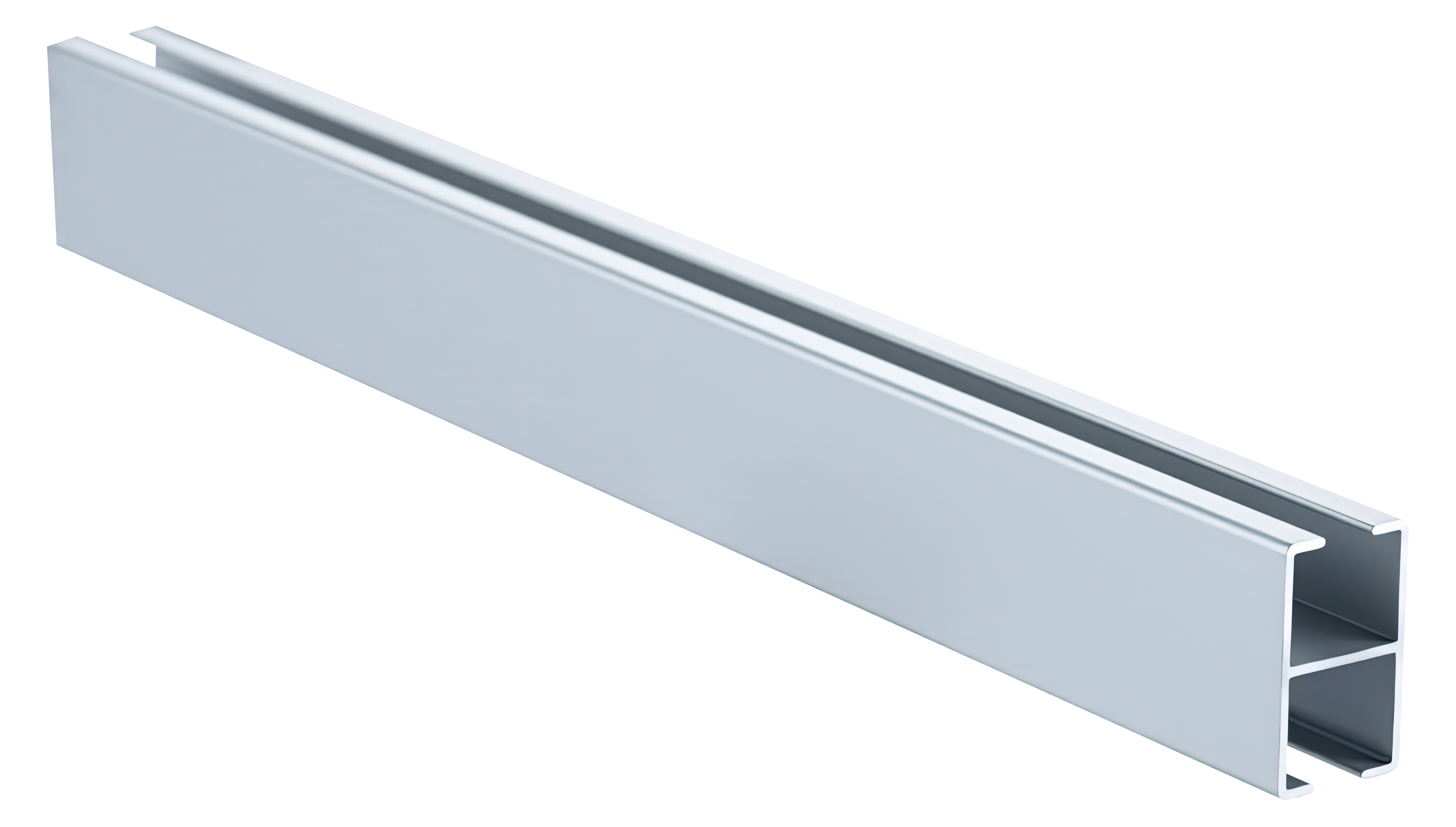

Aluminium Alloy Track

Aluminium Alloy 6063 T52

Aluminium Alloy 6063 T52 is ideal for curtain tracks due to its high strength-to-weight ratio, excellent corrosion resistance, and smooth surface finish. The T52 temper enhances formability and stress-crack resistance.

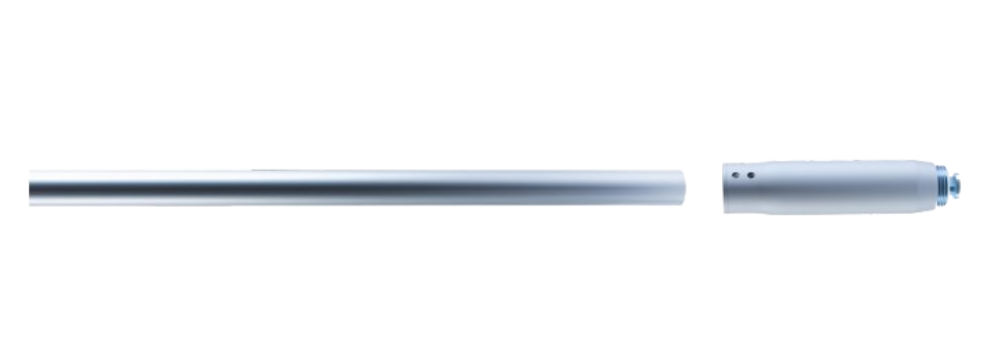

Suspension Rod

Adjustable Suspension Rod

  • Adjustable Length: Up to 3000mm
  • Material: Aluminium
  • Mounting: Ceiling plate
  • Load Capacity: Up to 50 kg

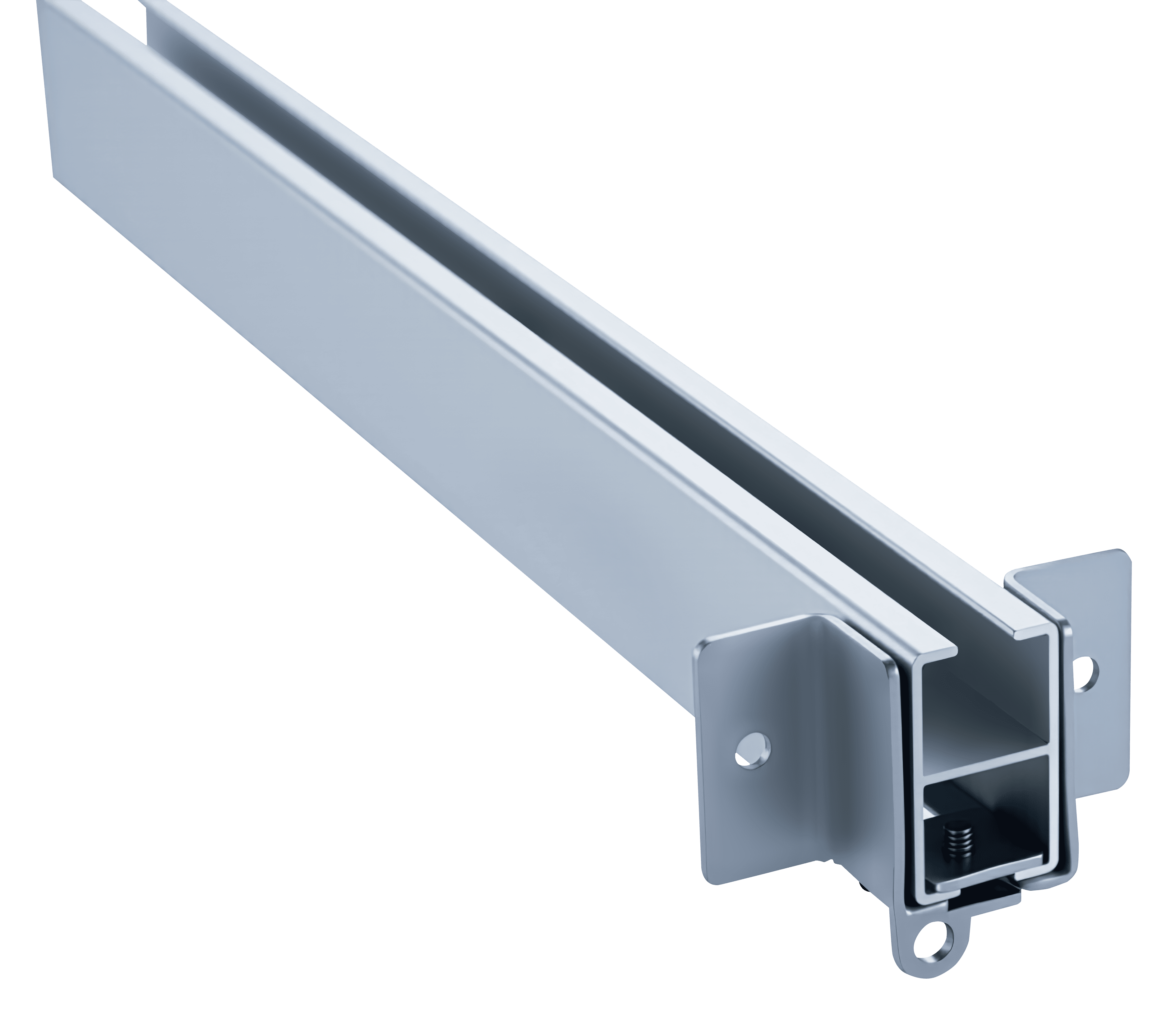

Wall Bracket

LEX-TS Wall Bracket

A robust mounting solution designed to support cubicle curtain tracks in wall-mounted applications. Features a compact design and a maximum load-bearing capacity of 100KG.

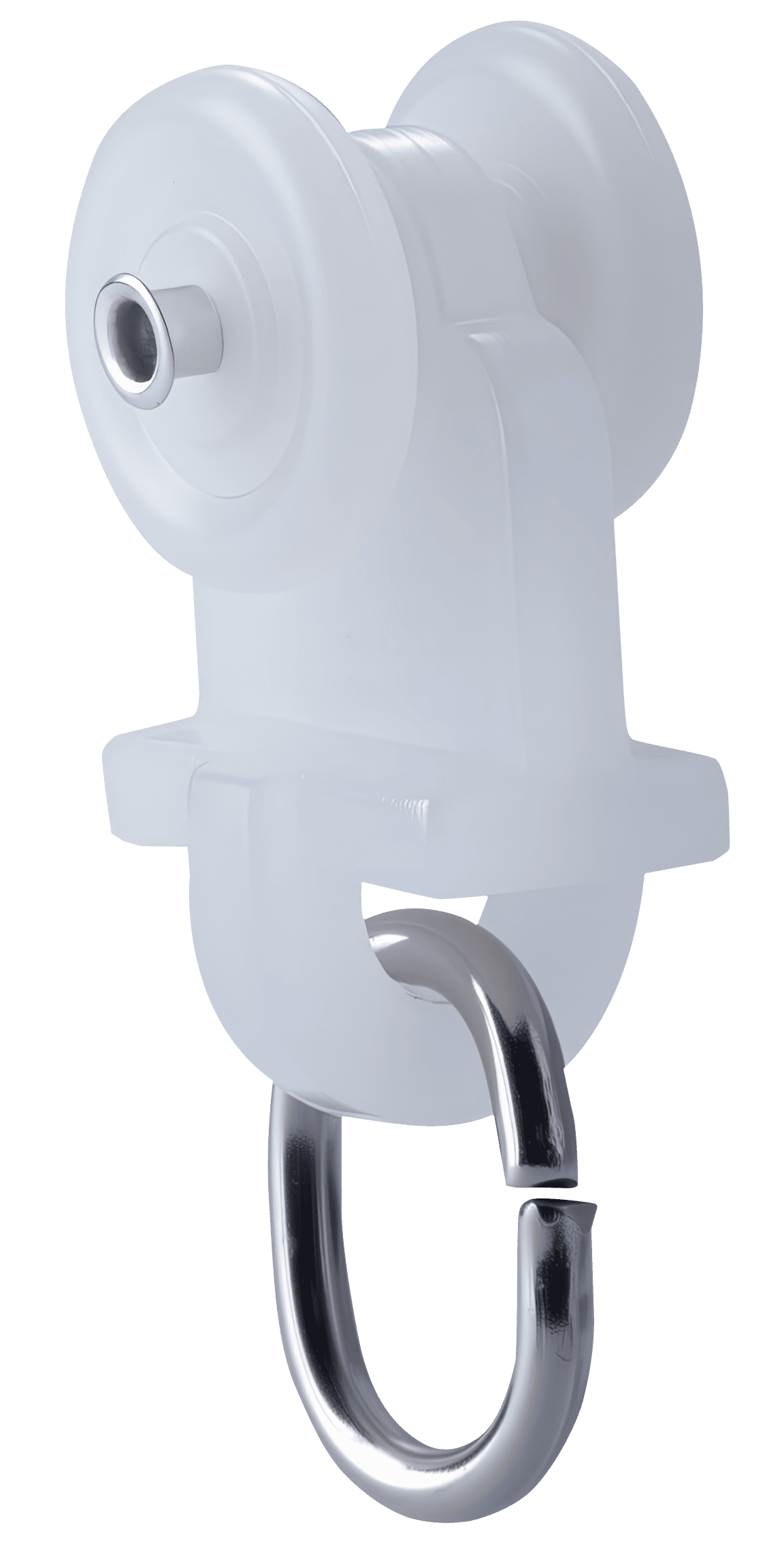

360 Roller

LEX-TS 360° Roller

  • Rotation: 360° swivel head
  • Load Capacity: Up to 5KG per piece
  • Compatibility: Standard hooks

Warranty Assurance

Product quality and performance assurance is guaranteed upon full procurement.
